ALLOY DSG

Double Single Glass Design suitable for “Acoustic Room”

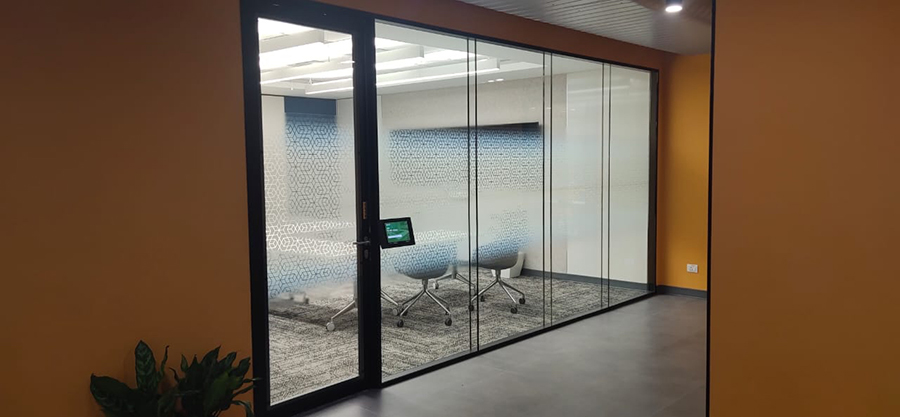

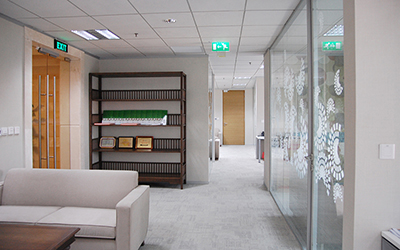

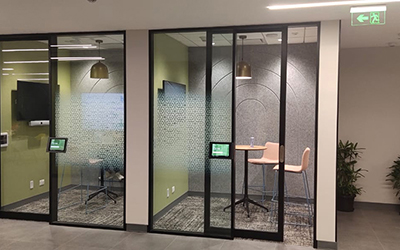

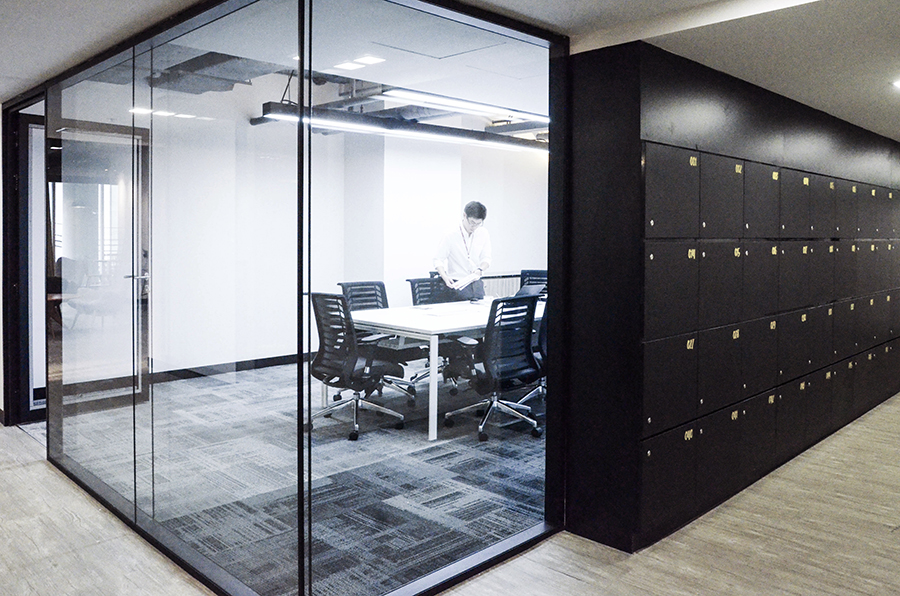

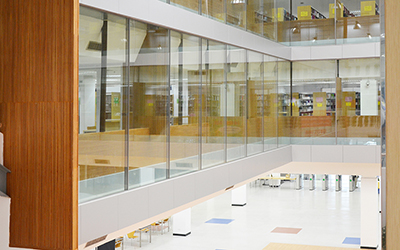

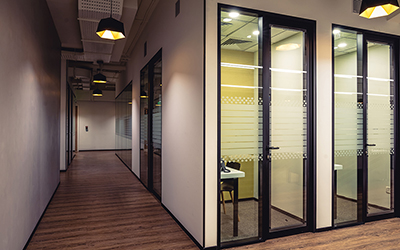

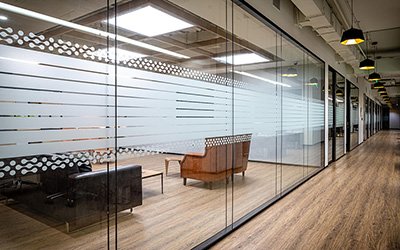

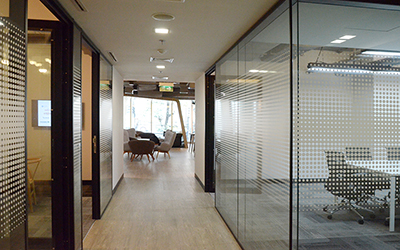

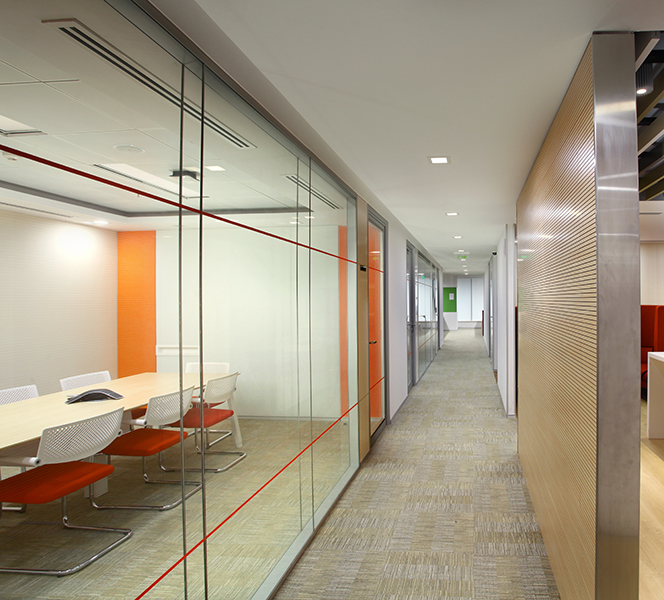

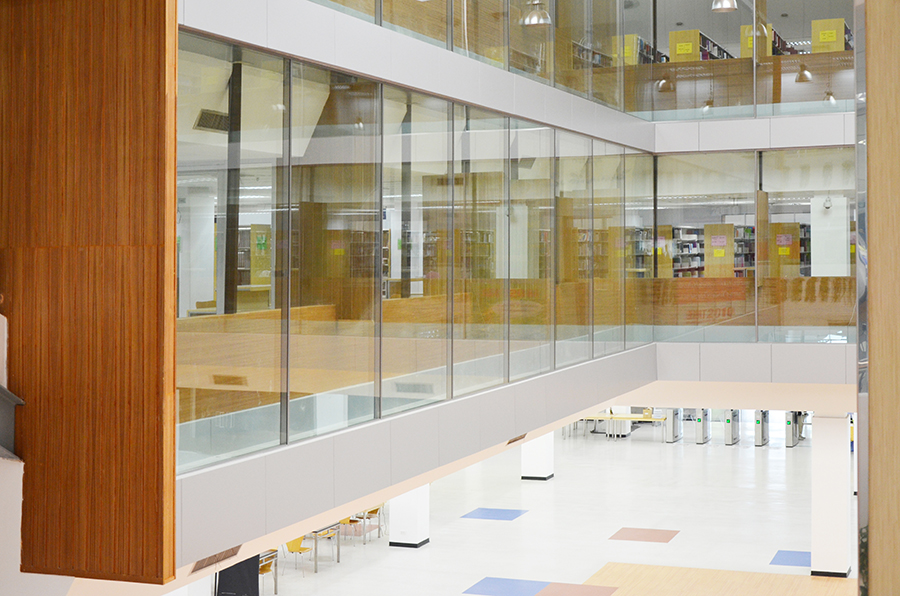

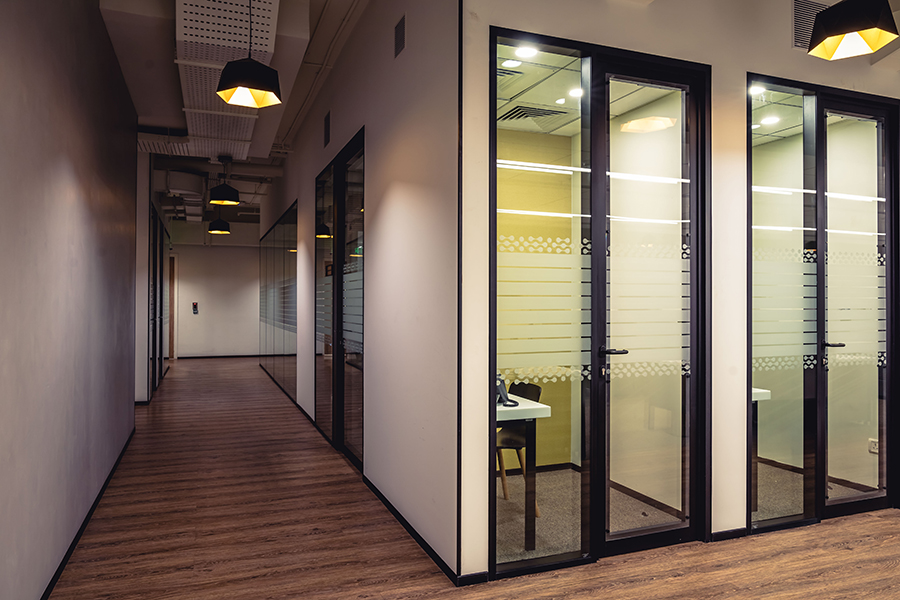

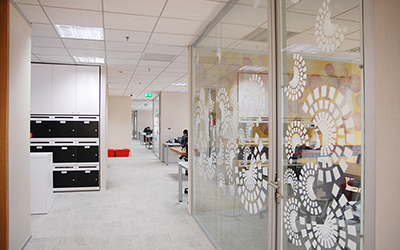

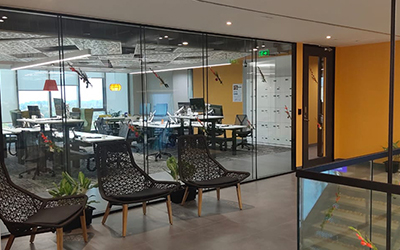

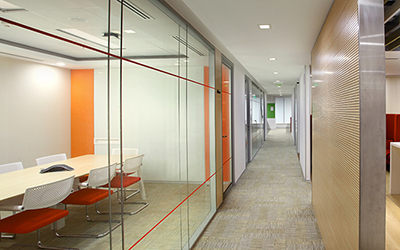

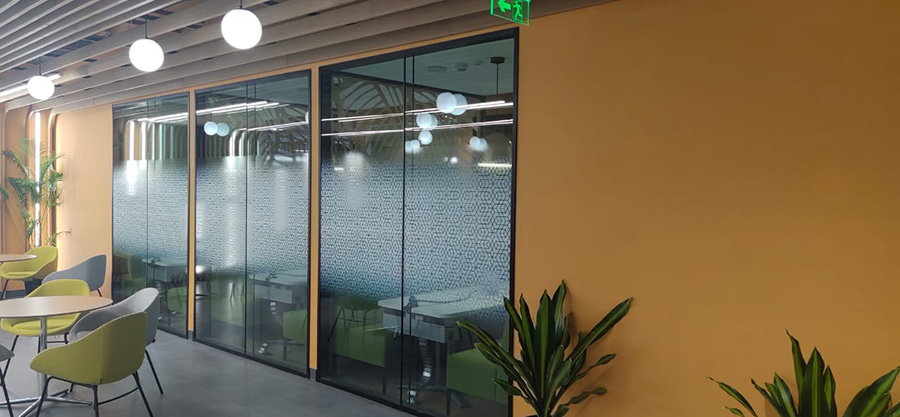

DSG's represents the latest in design innovation from ALLOY Partitioning System. DSG Glass walls are available in a complete flushed single glazed frontline or performance double glass configuration. Auto Venetian slim blinds are available as an added option.

Acoustic Performance.
Acoustic plays an important role in the design of an effective workspace. Alloy DSG is engineered to allow specialist consultants to effectively manage sound absorption and transmission characteristics of a particular workspace using a combination of sound absorptive and reflective paneling affixed to DSG. Universal framework.

DSG systems also meet stringent sound transmission tests, achieving an impressive 43 dB rating for the performance double glazed paneling, and an STC performance exceeding 45 dB for the solid panel system.

A qualified expert in ALLOY should always be consulted when designing your acoustic requirements for your office workspace.
  • DSG Frames, sized 80 mm. x 30 mm. and 100 mm. x 30 mm.
  • Supports glass thickness 8 mm. – 12 mm. (Better to use laminated glass for performance)
  • Able to be assembled in several formats.
  • Each aluminium frame able to be used together.
  • Use a 3 mm. locking clip on the inside to keep frame firmly in place.
  • Using 3M tape instead of rubber compression glass makes the job neat thus offers a better performance in sound absorption.

Specification

 GLASS THICKNESS  8mm. – 12 mm.
 FRAME DEPTH  80mm. & 100mm.
 MAXIMUM HEIGHT  2.8 Meter
 MAXIMUM WIDTH  1.2 Meter / Panel
 ALUMINIUM THICKNESS  1.2 mm. – 1.5 mm.
