ALLOY S40

Slim door system.

ALLOY S40 Top Hang slim sliding Door & Pivot Door System.

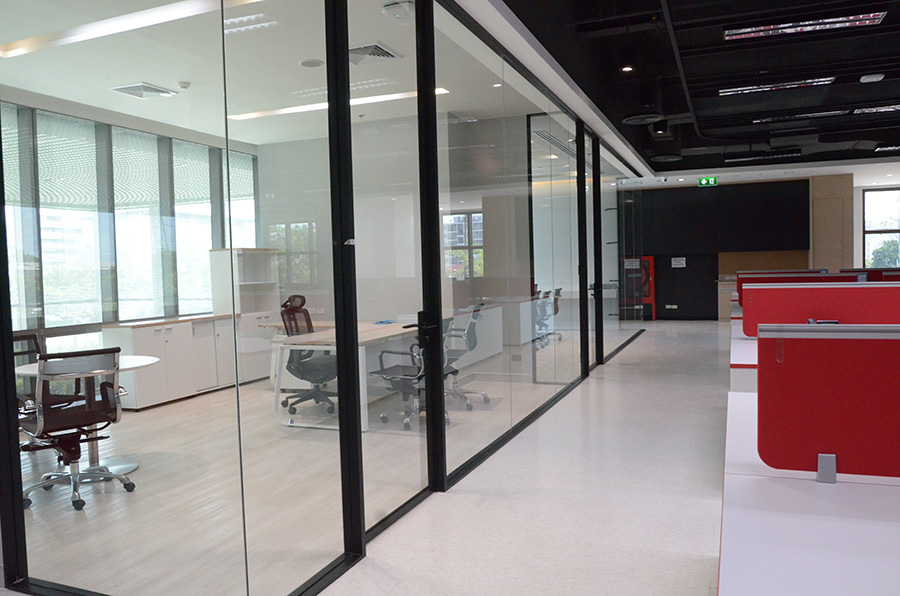

ALLOY 40 is a glazed sliding door system with an ultra-slim 40 mm. platform, ideally suited for using in rooms that require physical division without visual separation.

S40 door system available in 2 functions.

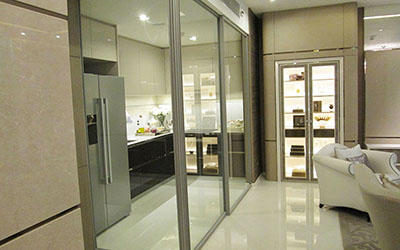

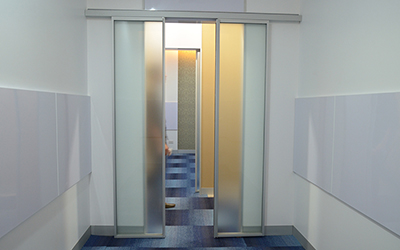

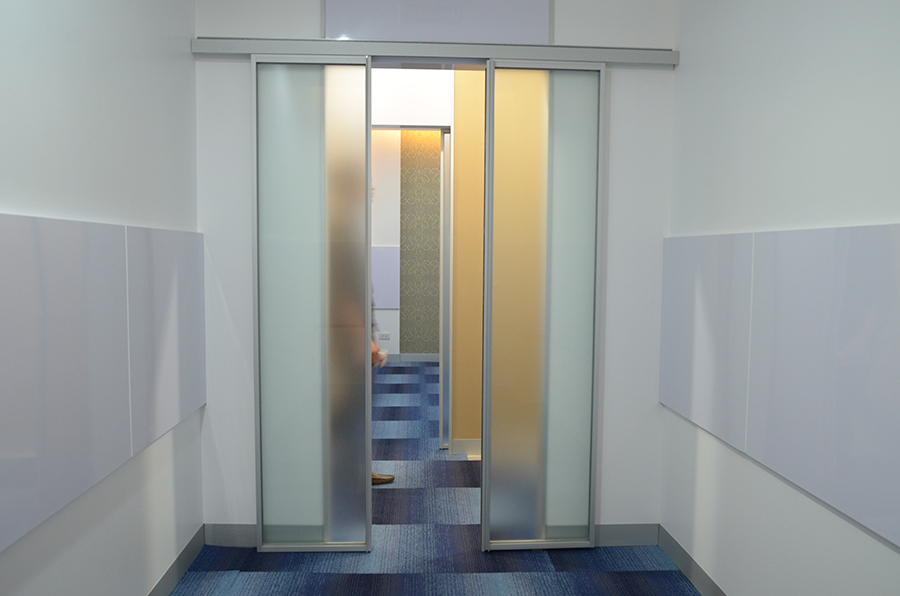

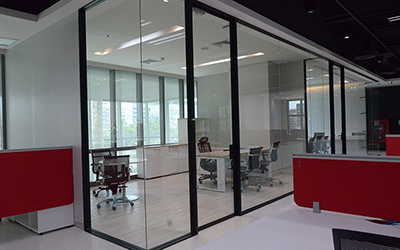

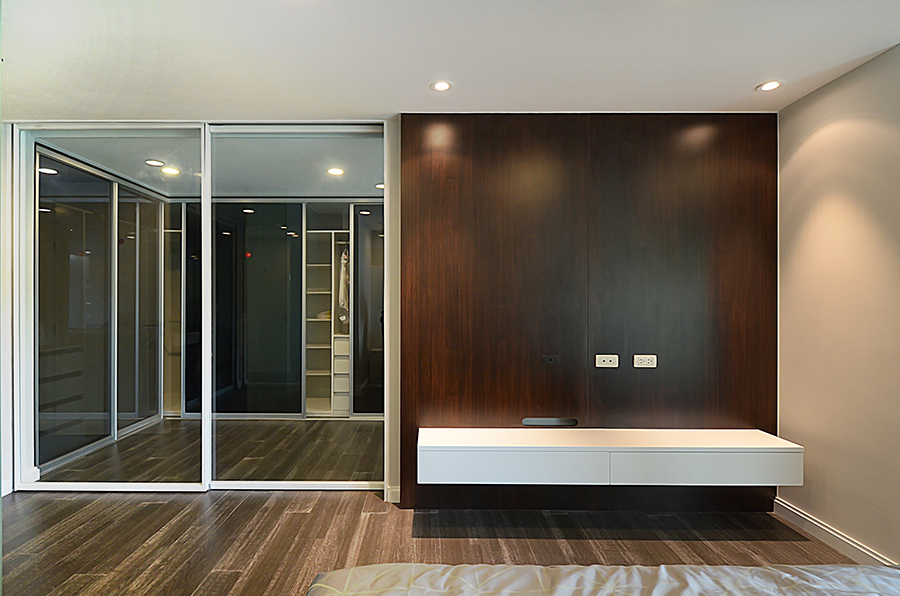

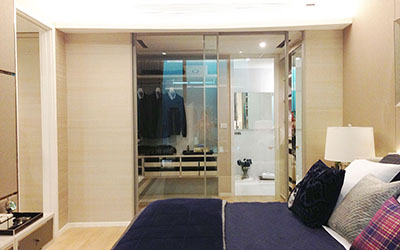

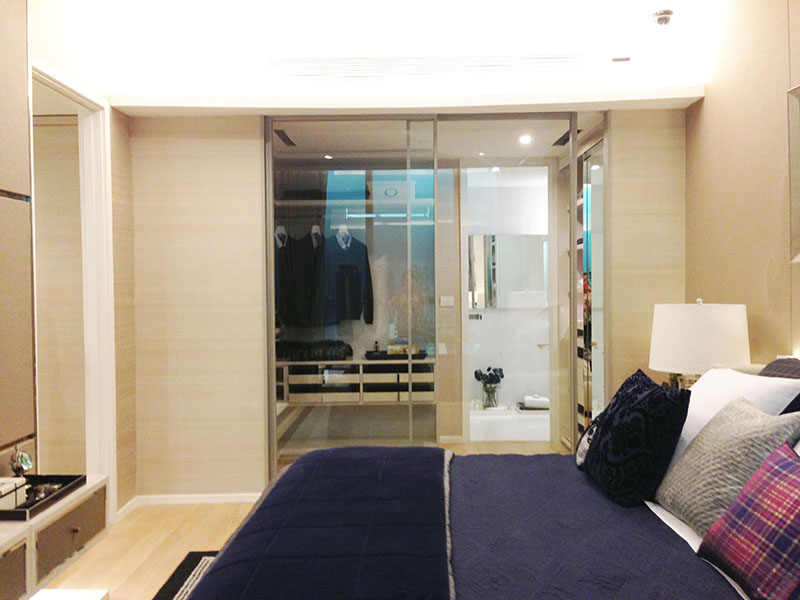

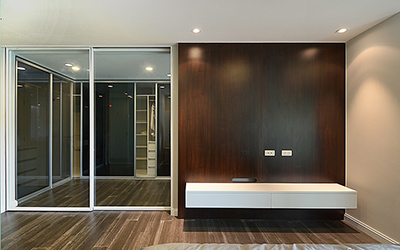

  • Sliding door system.
    Alloy S40 sliding door system is engineered using the finest European quality silent running rollers with stainless steel ball bearings that can accommodate up to 80 kg. per door panel.

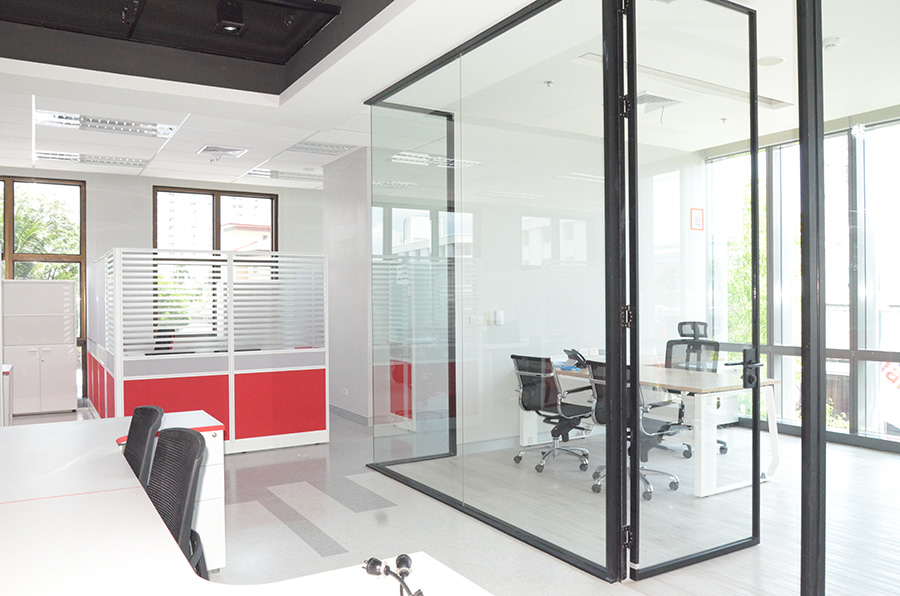

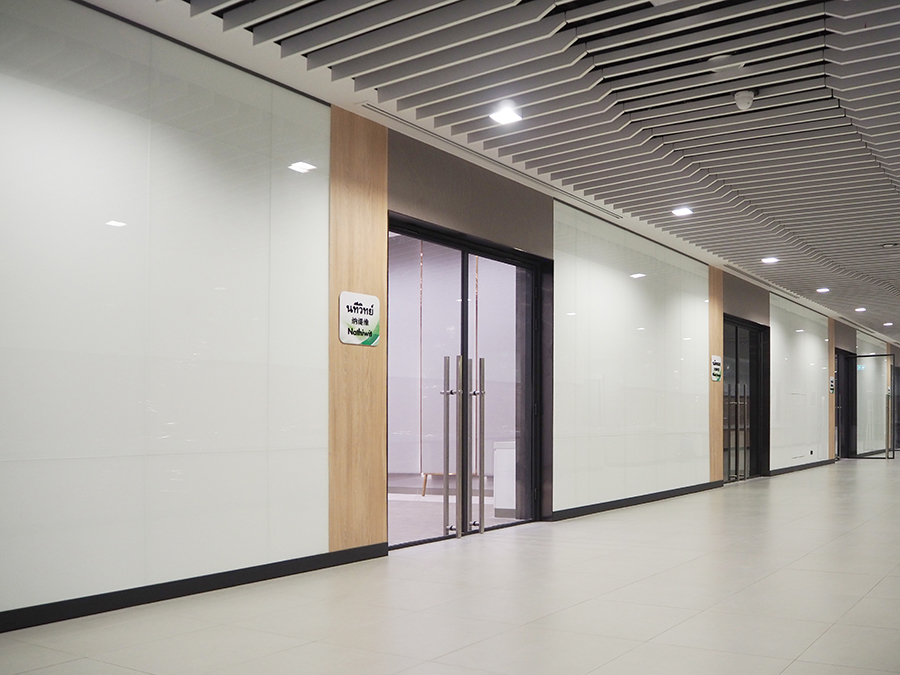

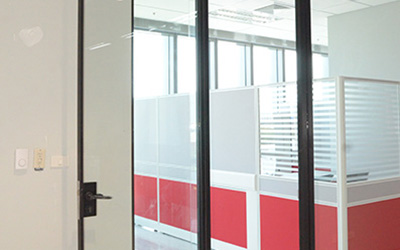

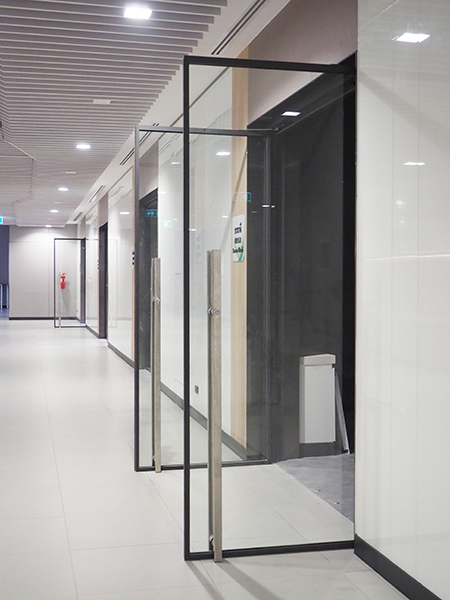

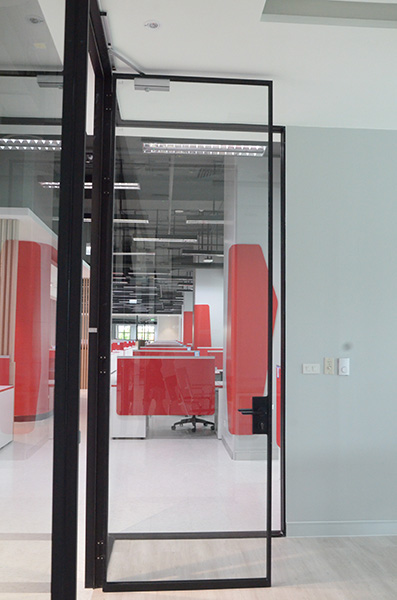

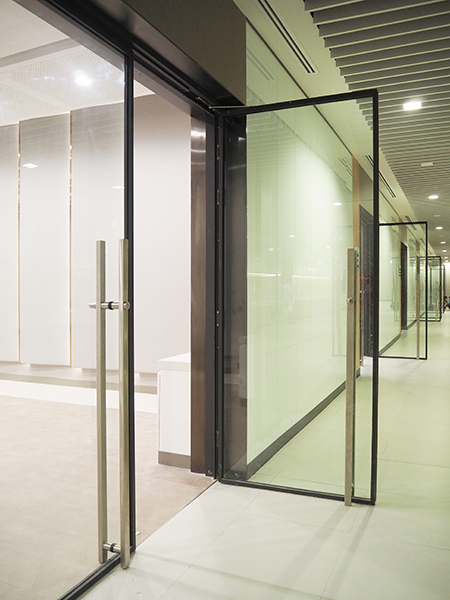

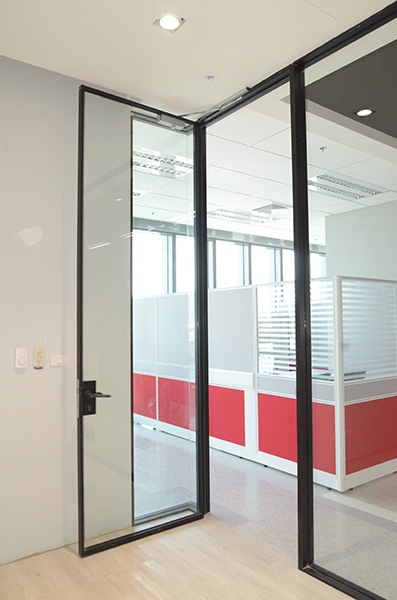

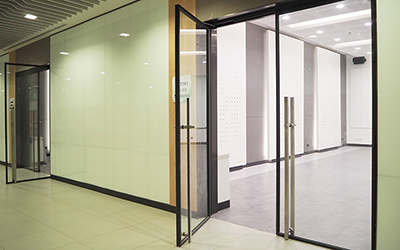

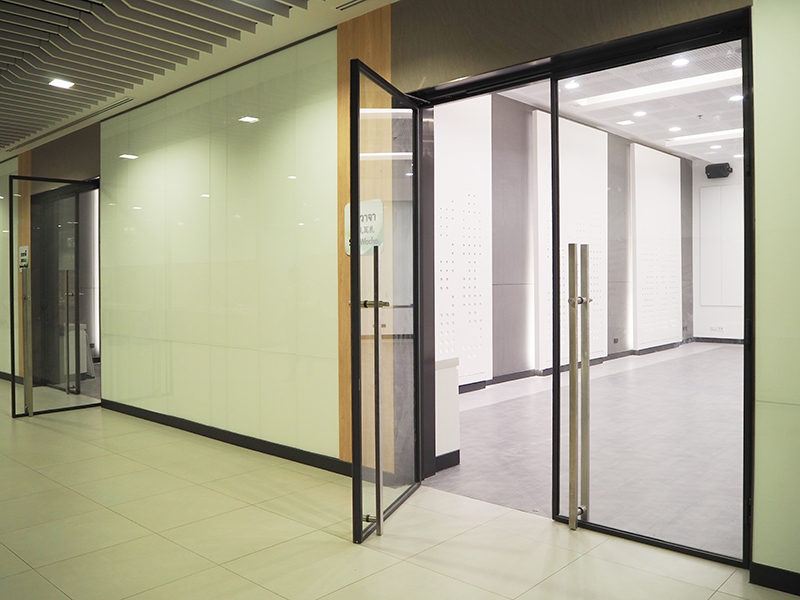

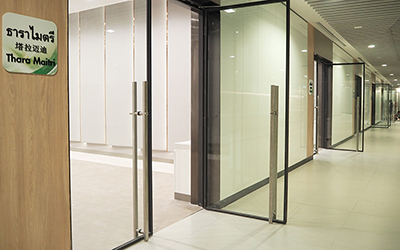

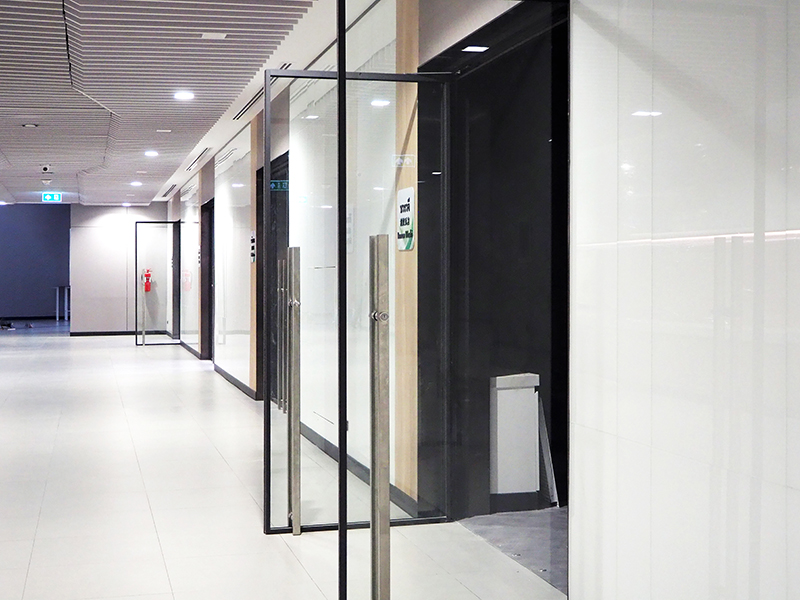

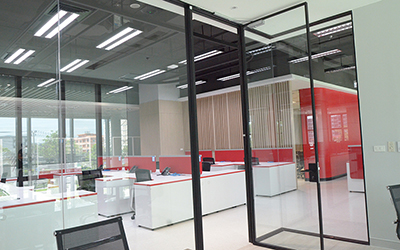

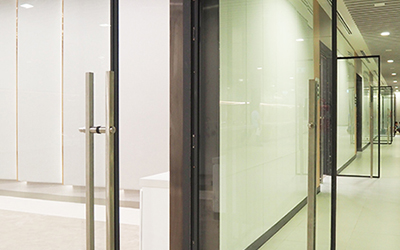

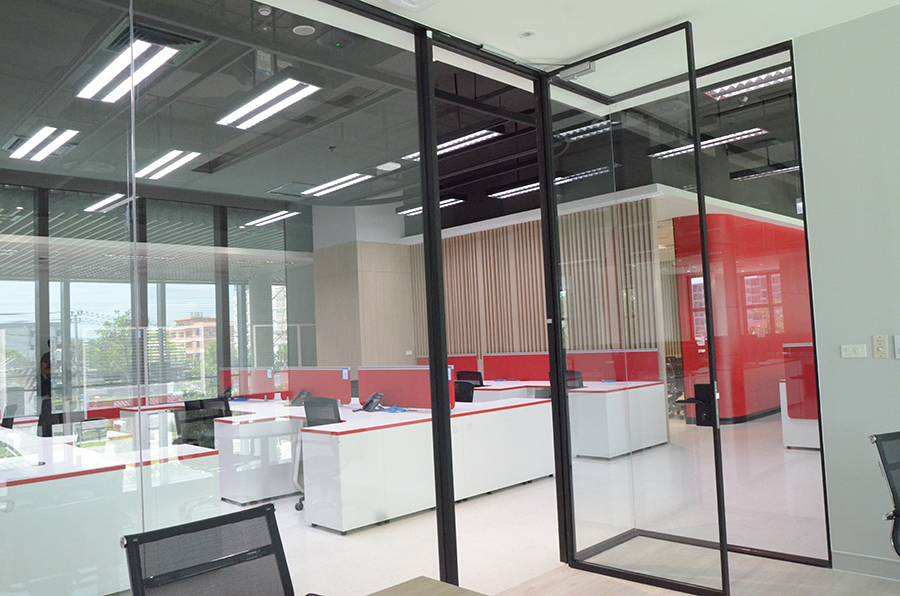

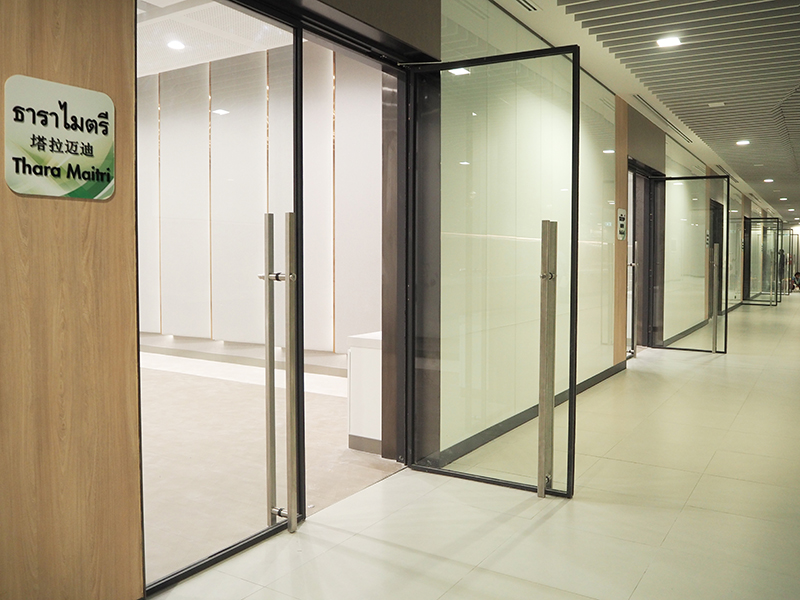

  • Hinge door system.

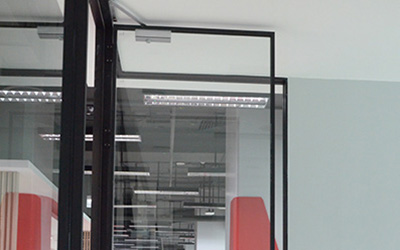

    Alloy S40 Hinge door system is slimmest aluminium door panel and able to use with inter-HINGE which able to make color its same color with aluminium frame. In addition, we also design bottom rail put in arm of door closer perfectly.
For door panel 2 options included exclusive hardware complete set. Alloy S40 is used extensively in condominium and hotel fit-out, as well as home office and study renovations.
  • Alloy S40 frame, sized 40 mm. x 18 mm.
  • Sliding door systems are available for use on the upper rails.
  • There is a variety design to choose from.
  • Slim in design.
  • No visibility for screw heads after installation.
  • Options to choose a variety of colours to suit preference.
  • Sliding Track & Cover plate is clip on system, easy to take off for maintenance roller.

Specification

 GLASS THICKNESS  8mm. – 10 mm.
 FRAME DEPTH  40mm.
 MAXIMUM HEIGHT  2.8 Meter
 MAXIMUM WIDTH  1 Meter / Panel
 MAXIMUM WEIGHT  80 kg. / Panel
 ALUMINIUM THICKNESS  1.5 mm. – 2 mm.
